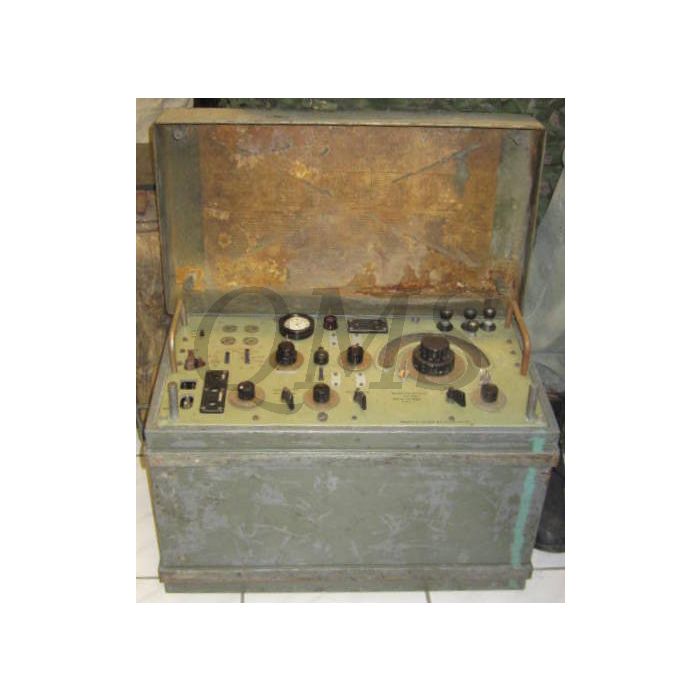

Reception set R107 (Ontvanger R107)
€ 175,00
SKU
Reception set R107
with metal lid, no garanty on technical problems
The reception Set R.107 is a nine valve (eight plus rectifier)superheterodyne receiver which is designed for receiving both C.W. and R.T. signals. It is used particulary in conjunction with the Wireless No.12 and No.33.
| Freq. cov. | 1.2 to 17.5 MHz in 3 bands: Band1 1.2 - 3.0 MHz Band2 2.9 - 7.25 MHz Band3 7.0 - 17.5 MHz |
| IF | 465 KHz |
| Tubes | 4 x ARP34 (EF39) |
| 4 x AR21 (EBC33) | |
| 1 x 6X5G | |
| Power supply | 100-250 VAC |
| 12 VDC - 3A | |
| Size | 24 x 13 x 17 1/4 in |
| Weight | 96 lbs |
